Garage Door Opener Installation in Arlington Heights, IL
Sleeping above the garage changes which opener you should buy. So does a tight ceiling, a three-car bay, and a door nobody has balanced in twenty years. Garage door opener installation in Arlington Heights is mostly a question of matching the machine to the garage it has to live in.
Drive type
Pick the drive for the garage, not for the brochure
Three mechanisms cover almost all residential work, and the right one is obvious once you have looked at the ceiling and asked who sleeps above it.
Belt drive
A reinforced rubber belt instead of a steel chain, with no metallic slap at each direction change. The default where a bedroom or office sits directly above the garage — which describes a great many two-story homes here, the front-facing garage under a bedroom having been standard since the 1960s.
Chain drive
A steel chain running a trolley along a rail. Robust, cheap, well understood, fine where noise does not matter: detached garages, workshops, bays with only a hallway above.
Wall-mount jackshaft
Mounted beside the door on the torsion shaft. No rail, no motor overhead, no ceiling penetrations. The answer when headroom is tight or the ceiling is finished, and the usual spec on the three-car estate garages in Inverness and Barrington.
Screw-drive units still turn up in older garages here and we service them, but for new work those three cover nearly every case. Fitting an opener with a new door? Both get specified together — see garage door installation.
Motor
DC motors, soft start, and the horsepower conversation
Modern openers overwhelmingly use DC motors, and the benefit is control rather than raw power. A DC unit ramps speed up at the start of travel and tapers it at the end, so the door does not slam into its stops. Soft start and soft stop are the difference between a door you hear upstairs and one you do not. AC motors are cheaper and start abruptly; still fine on a detached garage.
Then horsepower, where homeowners get oversold. The honest version: a correctly balanced door needs far less motor than people are told. The springs carry the weight; the opener guides a nearly weightless assembly and holds it closed. A 16 × 7 insulated steel door might weigh 180–220 lb, yet with the springs wound correctly you can lift it one-handed.
Buying a bigger motor to overcome a badly balanced door just gives a broken counterbalance enough force to keep working while it destroys rollers, hinges, cables and eventually the sections. Extra motor earns its keep on heavy timber, full-view glass, oversized openings and high-cycle use. If your opener is straining, check the springs before the horsepower label — that is a counterbalance job.
The two-minute balance test
With the door closed, pull the manual release. Lift it by hand to waist height and let go. A balanced door stays roughly where you put it. If it slams down or runs up, the springs are wrong and no opener should compensate for that. Do not try this if a spring is visibly broken.
Winter
Battery backup is not a luxury here
Northwest Illinois winters take the power out. A garage with no backup then means finding the release cord in the dark, hauling a 200 lb door by hand, then leaving it open or locked while you get to work.
A backup unit keeps the opener cycling for a useful number of operations after the supply drops, and keeps the safety sensors alive so the door still reverses. It covers summer outages too.
The battery is a consumable. It degrades faster in an unheated garage and is better replaced on a schedule than discovered flat during an outage. We check it on every service visit.
Power supply
The electrical question
An opener wants its own grounded ceiling outlet close to the motor head, on a circuit not also feeding a freezer, a compressor and a bank of shop lights. Extension cords are not an acceptable permanent supply.
Plenty of 1960s and 1970s garages here have one outlet, on a wall, on a shared circuit. Adding a dedicated ceiling receptacle is electrical work, and electrical contractors here follow their own registration route with the Village. An electrical permit may be involved, so we confirm with Building & Life Safety on 847-368-5560 rather than assuming. Where a sound ceiling outlet already exists, an opener swap is a straight mechanical job.
Safety
What every new opener has to do by law
Federal requirements, not options, and the part of an installation most often skimped.
The Consumer Product Safety Commission’s rule for residential garage door operators, 16 CFR 1211, incorporates UL 325 and requires four things of every unit sold today:
Reversal within 2 seconds

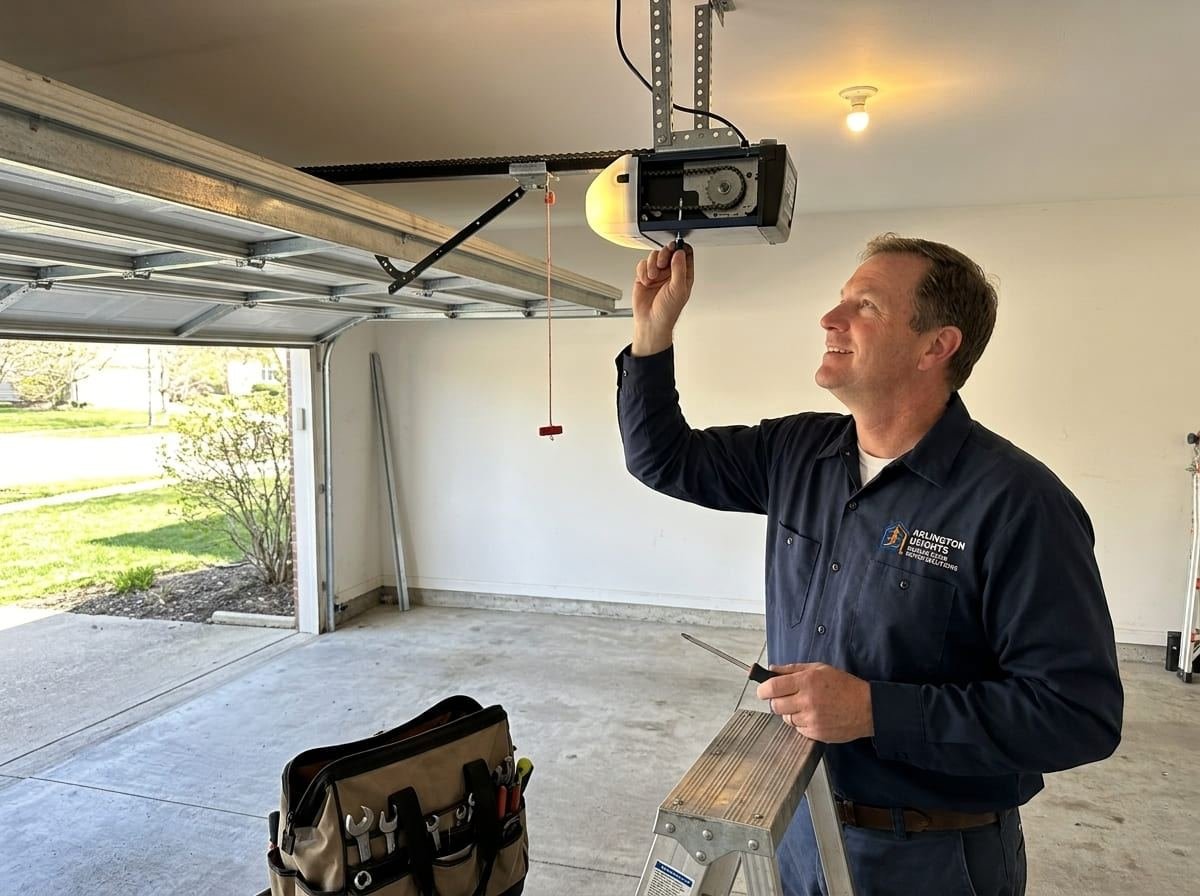

Meet an obstruction on the way down and the operator’s force sensing must reverse the door within two seconds. Set at commissioning, against your door.
External entrapment sensing
The photo eyes. LiftMaster specifies mounting them no higher than 6 inches from the floor, which is where a small child or pet is. At knee height they pass a test and miss what they exist for.
A 30-second backup clock
If the door has not finished closing within 30 seconds the operator reopens it: a timeout for when force sensing and photo eyes have both failed.
Manual detachment
The red emergency release handle. We show you where it is and how to re-engage it.
Openers made after January 1, 1991 had to meet UL 325 entrapment protection; those after January 1, 1993 had to carry external entrapment sensing or a constant-contact close button. A unit predating that should be replaced rather than repaired, and DASMA’s opener safety guidance agrees. Test yours monthly: the 30-day check takes four minutes.
Features
Smart features worth having, and ones that will age badly
Worth having: phone notification and remote close, because “did I leave it open?” is the commonest reason people drive home at lunchtime. A light head that actually illuminates the bay. Timer-to-close. An outside keypad. Battery backup.
Think harder about: camera and delivery integrations tied to one manufacturer’s cloud, voice-assistant tie-ins depending on a platform outliving the opener, and anything that stops working if a subscription lapses. An opener is a fifteen-year purchase; the app may not be.
The mechanical side decides whether it is quiet in year eight. An opener on an unbalanced door fails early: the gear train carries weight the springs should, gears strip, trolleys crack, and the noise arrives long before the failure. Loud door? Fix that first — noisy garage door diagnosis.
Common questions
Opener installation: the questions worth asking
Which opener is quietest if there is a bedroom over the garage?
A DC belt drive with soft start and soft stop, or a wall-mount jackshaft. The jackshaft is quieter still because no rail or motor sits above the ceiling, so no vibration reaches the joists. The door matters as much as the opener: nylon rollers on sealed bearings and a balanced counterbalance remove most of the noise people blame on the motor.
Do I need a 3/4 or 1 1/4 horsepower opener for a double door?
Usually not. The springs carry the weight; the opener guides the door. A correctly balanced 16 × 7 insulated door can be lifted by hand, so it does not need a large motor. Extra power is justified on heavy timber, full-view glass and high-cycle use. An installer selling horsepower to cure a heavy door is treating a symptom.
Can I fit a wall-mount opener to my garage?
If the door runs on a torsion system with a shaft across the header and there is clear wall beside the opening, usually yes. It needs sideroom for the motor and a solid mounting surface, and doors on extension springs need converting first. We measure on site. It is the standard answer for tight headroom and finished ceilings.
Will a new opener work with my old garage door?
Provided the door is sound and properly balanced, yes. We check the counterbalance, the top section where the opener arm attaches, and whether that section has a strut. Bolting a new opener to a tired top section is how you pull it apart. If the door is at the end of its life we say so rather than fit around it.
Do you install openers outside Arlington Heights?
Yes. We cover the northwest suburbs from our base on N Ridge Ave, including the estate garages in Inverness and Barrington, where multiple openers and jackshaft installations are common, plus Prospect Heights and the rest of our service area.
How long does an opener installation take?
A straight replacement on an existing mount, with a sound door and a usable ceiling outlet, is typically two to three hours: programming, force setting, sensor alignment and the reversal test. A jackshaft conversion or new electrical work takes longer. Hours and booking are here.
Tell us what is above your garage
Bedroom overhead, tight ceiling, three-car bay, no outlet up there? Those facts decide the opener. More about us.
